PPM HAS A STRONG POSITION IN PROVIDING COMPONENTS AS WELL AS TESTED ASSEMBLIES FOR FLUID MOVEMENT, CONTROL, FILTRATION, AND MEASUREMENT FOR DIVERSE APPLICATIONS. FROM LARGE INDUSTRIAL PUMPS TO SMALLER MEDICAL AND SUMP PUMPS, FILTRATION RELATED COMPONENTS, AND FLUID LEVEL AND LEAK DETECTION APPLICATIONS, PPM PROVIDES NUMEROUS COMPONENTS AND ASSEMBLIIES. PPM’S CAPABILITIES IN “LOST CORE” MOLDING AND THE “MOLDING IN” OF MAGNETS AND BEARINGS INTO TIGHT TOLERANCE POSITIONS ARE THE MOLDMAKING AND MOLDING SKILLS THAT ARE KEY IN MANY OF THESE APPLICATIONS. SEVERAL SAMPLES INCLUDE THE FOLLOWING:

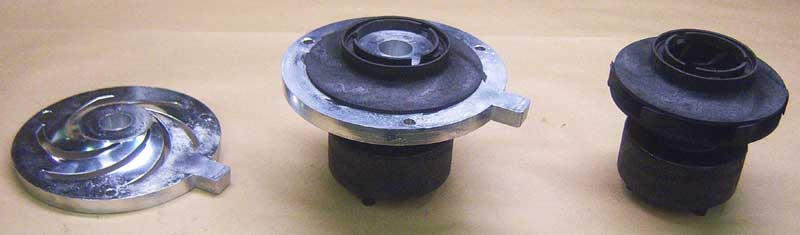

  • INDUSTRIAL PUMP IMPELLER AND BEARING ASSEMBLIES FOR A MAJOR INDUSTRIAL PUMP MARKET PARTICIPANT

  • Pump Impeller
    view larger image
    CHALLENGE(S) INCLUDE MOLDING LOST CORE (BIZMUTH ALLOY), OVERMOLDING CORE USING A CARBON FILLED TEFZEL MATERIAL, MOLDING OVER MAGNETS, MELTING OUT AND RECLAIMING ALLOY, AND TIGHT TOLERANCE MACHINING

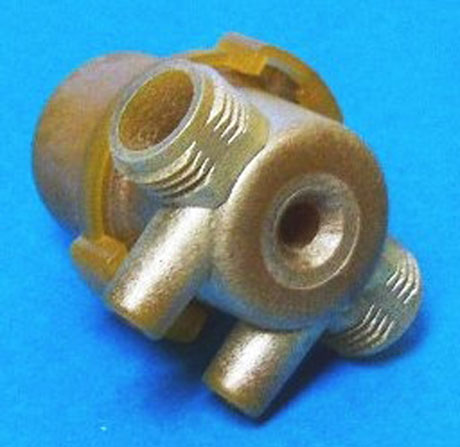

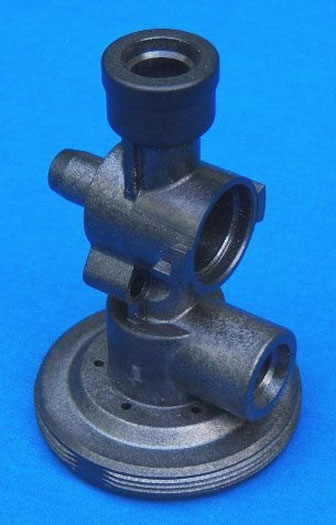

PETROLEUM OEM AND DISTRIBUTION COMPONENTS AND ASSEMBLIES

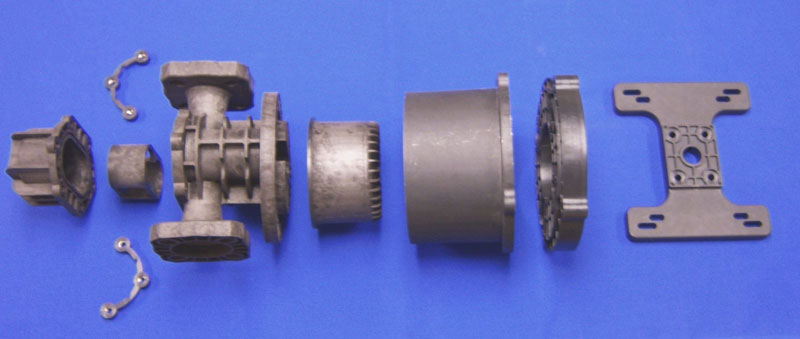

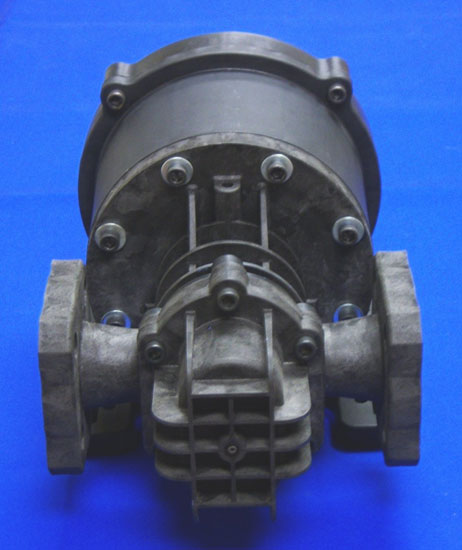

  • ALL INJECTION MOLDED AND MACHINED COMPONENTS FOR A GEAR DRIVEN LINE OF PUMPS FOR A SUBSIDIARY OF A MAJOR INDUSTRIAL GROUP

  • Pump Impeller
    view larger image
    Pump Impeller
    view larger image
    CHALLENGE(S) INCLUDE MOLD DESIGH FOR 45+ MOLDS, EXTREMELY TIGHT TOLERANCES, AND SIGNFICANT POST MOLDING MACHINING TO ACHIEVE FINISHED PRODUCT(S)

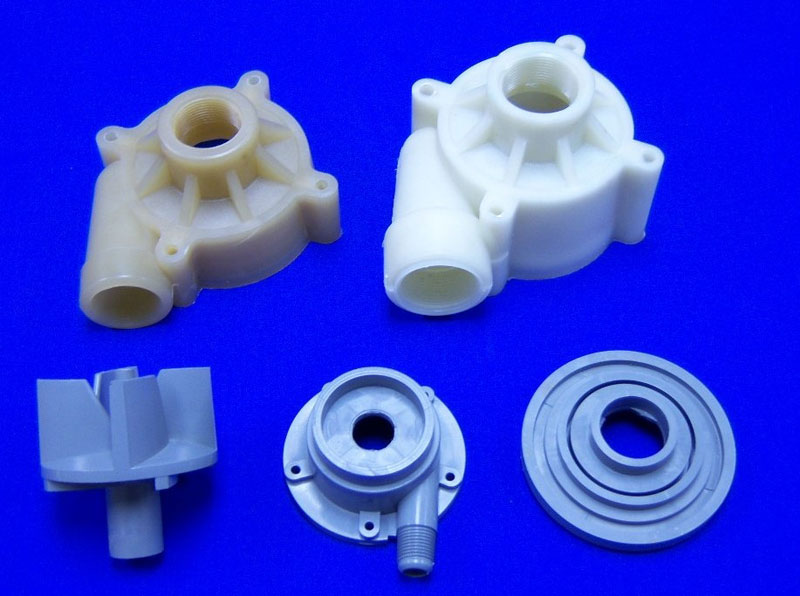

  • SUMP PUMP IMPELLER ASSEMBLY FOR A LEADING MANUFACTURER

  • Sump Pump
    view larger image
    CHALLENGE(S) INCLUDE MOLDING CORES FROM SOLUBLE RESIN, OVERMOLDING WITH RYTON, INSTALLING MAGNET, AND POST MOLDING machining

  • INDUSTRIAL PUMP SPIDER BEARING ASSEMBLIES FOR A MAJOR INDUSTRIAL PUMP MANUFACTURER

  •
    CHALLENGE(S) INCLUDE OVERMOLDING MAGNET INTO A TIGHT TOLERANCE POSITION AND POST MOLDING MACHINING

  • VARIOUS FILTER COMPONENTS AND ASSEMBLIES FOR MEDICAL, AEROSPACE, AND INDUSTRIAL APPLICATIONS

  •
